Shower Plumbing Diagram, Products, & More (Homeowner’s Guide)

fully installed shower
fully installed shower

Upgrading or maintaining your shower is a key aspect of home improvement that can greatly enhance your daily routine. Understanding shower plumbing and the products available can save you time, money, and frustration. In this comprehensive guide, we’ll cover the basics of shower plumbing, including:

  • Understanding shower plumbing
  • Shower plumbing diagram
  • Essential shower plumbing products
  • DIY tips for shower plumbing
  • Advanced shower plumbing projects
  • Maintenance tips for long-lasting shower plumbing

🤔 Understanding Shower Plumbing

To effectively tackle any shower-related project, you need a basic understanding of shower plumbing. This includes knowing the components involved and how they work together.

Basic Components of Shower Plumbing

  • Water Supply Lines: These pipes deliver hot and cold water to your shower. Typically made from copper, PEX, or CPVC, these lines are critical for controlling water temperature and flow.
  • Shut-Off Valves: Located near the shower, these valves allow you to turn off the water supply to the shower without affecting the rest of the house. This is particularly useful during repairs.
  • Shower Valve: This device mixes hot and cold water to the desired temperature. Modern shower valves often come with anti-scald features to prevent sudden temperature changes.
  • Shower Head: The part where water exits the system. Shower heads come in various designs, from basic fixed heads to advanced rain showers and handheld models.
  • Shower Drain and P-Trap: The drain removes wastewater from the shower, while the P-trap prevents sewer gases from entering your home. The P-trap holds a small amount of water to block these gases.
  • Vent Pipe: Essential for maintaining proper drainage, the vent pipe allows air to enter the plumbing system, preventing vacuum locks and ensuring smooth water flow.

✅ Shower Plumbing Diagram

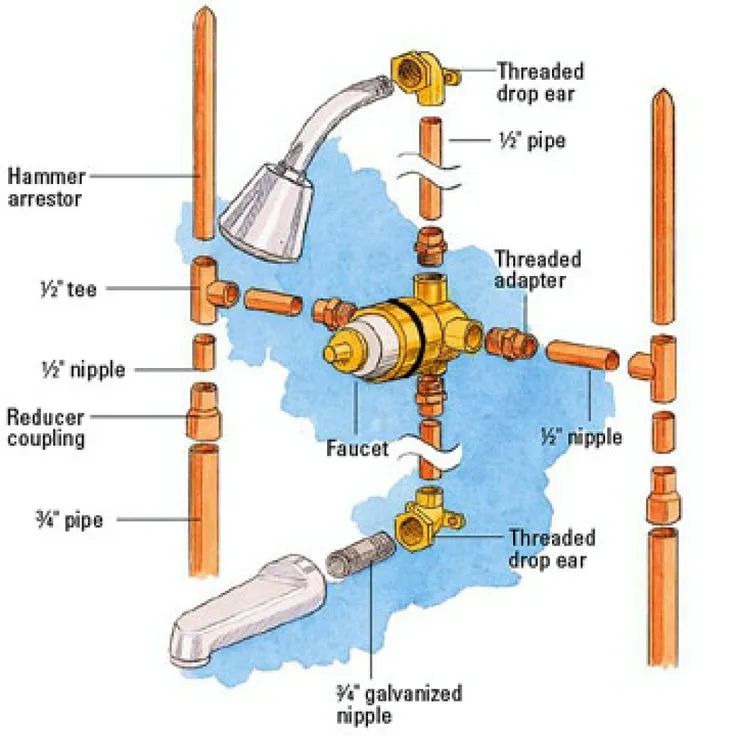

Understanding the layout of your shower plumbing is crucial for troubleshooting and repairs. Here’s a simplified bathroom plumbing diagram to help you visualize the setup:

  • Water Supply Lines: Hot and cold lines run from your home’s main supply to the shower valve.
  • Shut-Off Valves: Located along the supply lines for easy access.
  • Shower Valve: Installed within the wall, this controls water mix and flow.
  • Riser Pipe: Carries mixed water from the valve to the shower head.
  • Shower Head: Mounted at the end of the riser pipe.
  • Shower Drain: Located at the base of the shower, connected to the P-trap.
  • P-Trap: A U-shaped pipe beneath the drain.
  • Vent Pipe: Connected to the P-trap and extending up through the roof.

🛀 Essential Shower Plumbing Products

Choosing the right products for your shower can enhance functionality and aesthetics. Here’s a list of must-have items:

Shower Valves

  • Single-Handle Valves: Control both temperature and flow with one handle. Ideal for small spaces.
  • Dual-Handle Valves: Separate controls for hot and cold water. Offers precise temperature adjustments.
  • Thermostatic Valves: Maintain a constant water temperature, even if water pressure changes.

Shower Head

  • Fixed Shower Head: Simple, stationary heads. Available in various spray patterns.
  • Handheld Shower Head: Attached to a flexible hose. Great for targeted cleaning and rinsing.
  • Rain Shower Head: Large heads that simulate rainfall. Provide a luxurious shower experience.
  • Dual Shower Head: Combine a fixed and handheld showerhead. Offer versatility and convenience.

Shut-Off Valves

  • Ball Valves: Durable and reliable, with a lever handle.
  • Gate Valves: Less common but useful for infrequent shut-offs.
  • Angle Stop Valves: Compact, often used in tight spaces.

Pipes and Fittings

  • Copper Pipes: Traditional, durable, and resistant to corrosion.
  • PEX Pipes: Flexible, easy to install, and resistant to freezing.
  • CPVC Pipes: Affordable and easy to work with, suitable for hot and cold water.

Shower Drain Components

  • Shower Drain: Choose from basic models to decorative options with built-in hair catchers.
  • P-Traps: Ensure you have the right size and material for your plumbing system.
  • Drain Covers: Stainless steel or brass covers add a touch of elegance and prevent clogs.

🛠️ 3 DIY Tips for Shower Plumbing

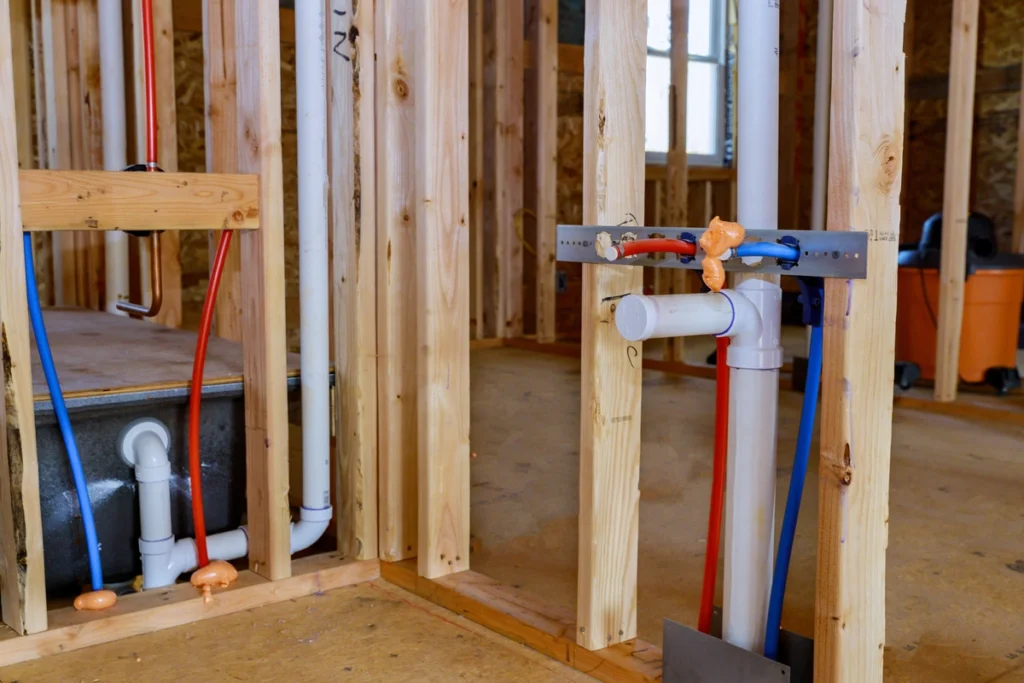

framing out the bathroom and installing shower plumbing materials

Taking on shower plumbing projects yourself can be rewarding. Here are some tips to help you get started:

1. Planning and Preparation

  • Understand Local Codes: Ensure your work complies with local plumbing codes to avoid future issues.
  • Gather Tools and Materials: Make sure you have all necessary tools and materials before starting. This includes wrenches, pipe cutters, sealants, and replacement parts.

2. Basic Repairs

  • Fixing Leaks: Identify the source of the leak and replace worn-out washers, O-rings, or faulty valves.
  • Unclogging Drains: Use a plunger, plumber’s snake, or chemical drain cleaner to clear blockages.
  • Replacing Showerheads: Unscrew the old showerhead, apply plumber’s tape to the threads, and screw on the new head.

3. Installing New Fixtures

  • Shut Off Water Supply: Always turn off the water supply before starting any plumbing work.
  • Follow Manufacturer Instructions: Read and follow the instructions provided with new fixtures to ensure proper installation.
  • Check for Leaks: After installation, turn on the water supply and check for leaks. Tighten connections as needed.

🚿 Advanced Shower Plumbing Projects

For those with more experience or seeking a challenge, consider these advanced projects:

Installing a New Shower Valve

  • Cutting Access: If your wall lacks an access panel, carefully cut a section to reach the valve.
  • Soldering or Crimping Pipes: Depending on your pipe type, you’ll need to solder (for copper) or crimp (for PEX) connections.
  • Testing the System: After installation, test the valve to ensure it regulates temperature and flow correctly.

Adding a Handheld Shower

  • Mounting Bracket: Install a bracket on the wall to hold the handheld showerhead.
  • Diverter Valve: Install a diverter valve to switch between the fixed and handheld showerheads.
  • Connecting Hoses: Attach the hose to the diverter and handheld showerhead, ensuring all connections are secure.

Upgrading to a Rain Showerhead

  • Extending the Riser Pipe: You may need to extend or replace the riser pipe to accommodate the larger showerhead.
  • Ceiling Mounts: For true rainfall effect, consider ceiling-mounted options, which require additional plumbing work.

💡 Maintenance Tips for Long-Lasting Shower Plumbing

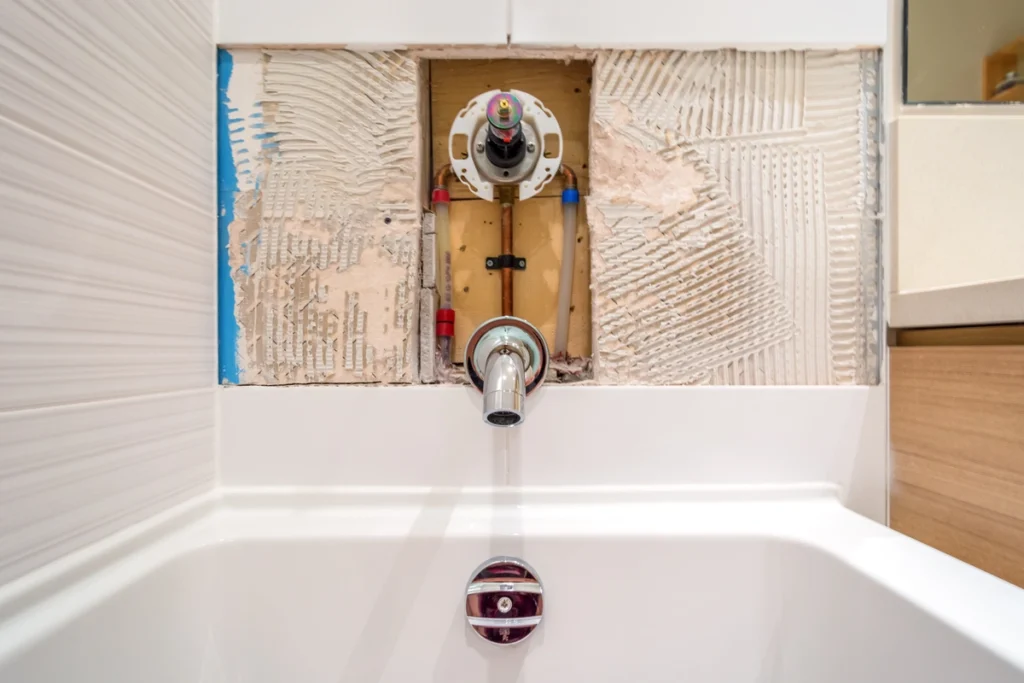

shower plumbing maintenance

Regular maintenance can prolong the life of your shower plumbing and prevent costly repairs. Here are some tips:

Clean Shower Heads and Fixtures

  • Descaling: Soak shower heads in vinegar to remove mineral deposits and maintain water flow.
  • Polishing: Use non-abrasive cleaners to keep fixtures shiny and free from corrosion.

Inspect and Replace Seals

  • Check for Leaks: Periodically inspect seals around the showerhead, valve, and drain for leaks.
  • Replace Worn Seals: Swap out any worn or cracked seals to prevent water damage.

Maintain Drains

  • Regular Cleaning: Clear hair and debris from the drain regularly to prevent clogs.
  • Use Drain Covers: Install covers to catch hair and other particles before they enter the drain.
